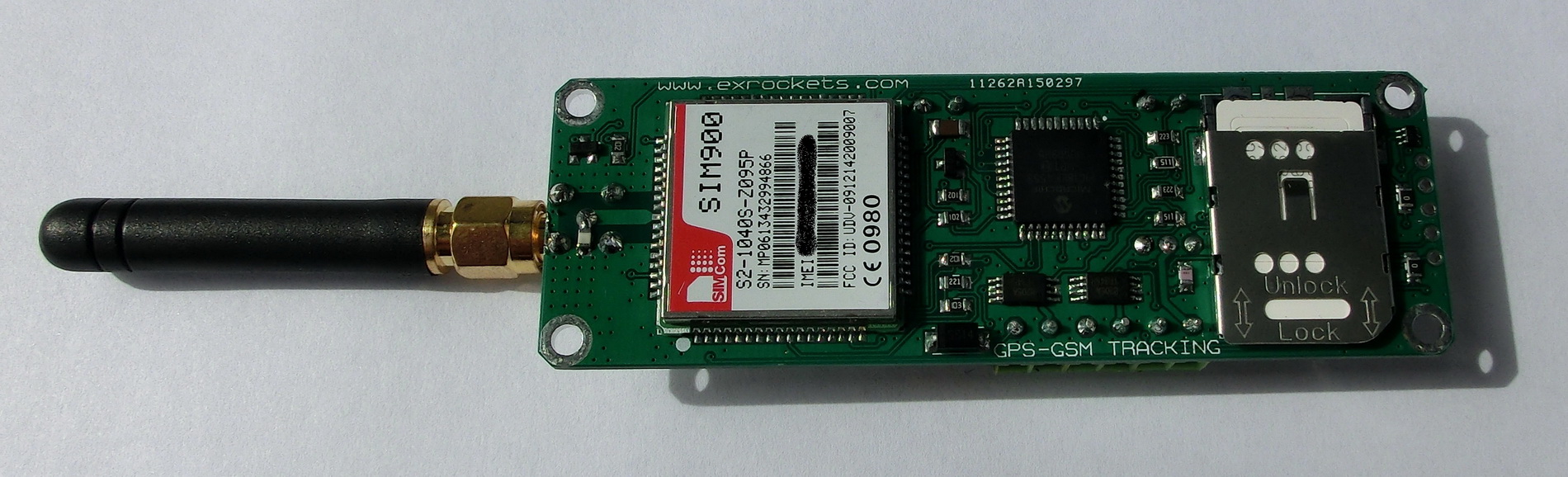

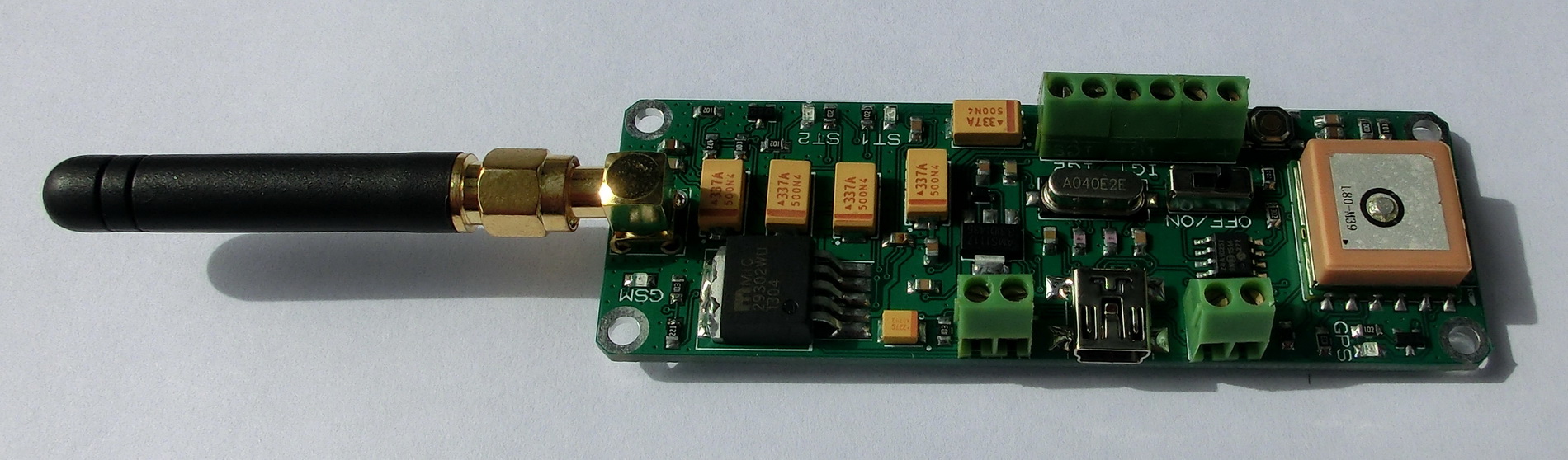

This GPS to GSM tracking device is a new project that I recently finished. This tracking device was specifically developed for tracking amateur rockets or high altitude balloons. Basically the tracker sends the current coordinates and status by SMS and in the same time it is capable of receiving and executing commands through SMS.

The technical specifications are as follow:
–    Quectel L80 GPS module
–    Simcom SIM900 GSM module (or its analogue)
–    4V minimum power supply
–    50mA nominal consumption
–    25mA consumption in economical mode
–    500mA peak current consumption when connecting to the network or receiving/sending messages
–    1Mb built in memory, enough for 1 hour tracking data with sampling data once per second
–    two power MOSFET outputs capable of delivering up to 40Amp peak current
–    two logical inputs with pull-up resistors
–    USB port for PC communication
–    test button
–    90x30mm (without antenna)
–    33gr weight
–    total cost of the BOM ~35$


Functionally the tracker has the following capabilities:
–    Switch on/off separately or together the outputs by sending SMS with text commands
–    Sending periodic status messages
–    Requesting a status message by sending SMS with text command
–    Sending a status message at change on any of the logic inputs (if this function is enabled)
–    Calculating the current distance and bearing from the start point i.e. 205m North-East
–    Sending an automatic status message when a predetermined distance in any direction from the start point has been reached

Each message contains the following information:START_TEST0
–    Last valid Latitude
–    Last valid Longitude
–    Last valid altitude
–    Current fix status i.e. valid or not valid
–    Logic input S1 and logic input S2 status
–    Distance from the starting point
–    Bearing from destination point
–    What triggered the message

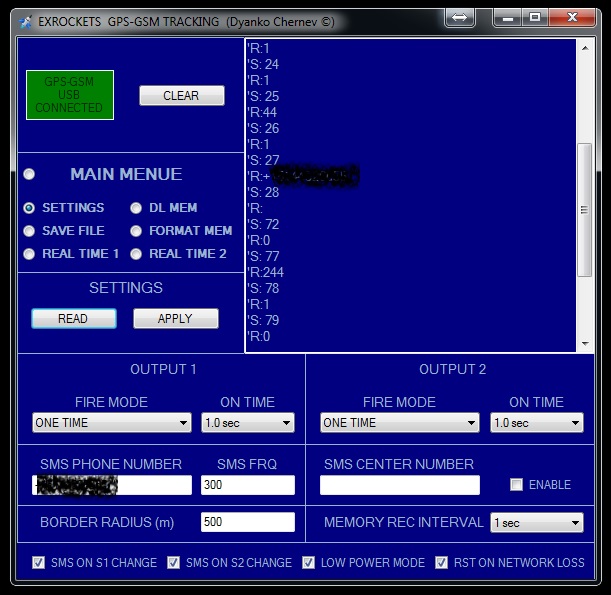

The software has the following options:


–    Each output can be separately set up when enabled by message to switch on only once, once every 15,30,60 and 120 seconds or continuously
–    Each output can be set up how long to stay switched on – from 0.1sec to 5.0 seconds
–    The SMS destination phone number
–    How often the SMS messages to be send from 10 to 65000 seconds
–    The SMS center phone number (not so often used nowadays, depends on the provider)
–    Border radius in meters in any direction from the start point, which if crossed, an automatic status message will be send
–    How often the current coordinates should be written in the memory (1sec to 65000 seconds). If the coordinates are written every second, then the memory is enough for about an hour
–    Turn on/off the automatic messaging on change at any of the both logic inputs
–    Turn on/off the energy saving mode. When enabled AND the SMS frequency is more than 45 seconds, the GSM module will be switched about 20sec before the SMS period and switched off right after the message was sent. This will save a considerable amount of energy, the drawback is that during the off period no SMS commands can be received. *Still crossing the border radius or change on S1 or S2 (if enabled) will force the module out of sleep and will send the status message.
–    Turn on/off the reset on network loss function. If the network has been lost, the MCU will reset the GSM module. This is useful if fast switching between GSM networks is required or the network signal is weak and the module often drops. However if no other network is present then the module will keep restarting which draws considerable amount of energy.

B: Download the trip record from the memory

C: Saving the current information in the text box to a text file

D: Deleting the memory.
–    There’s no real need to clear it before each trip as old data will be overwritten.

E: Real time 1

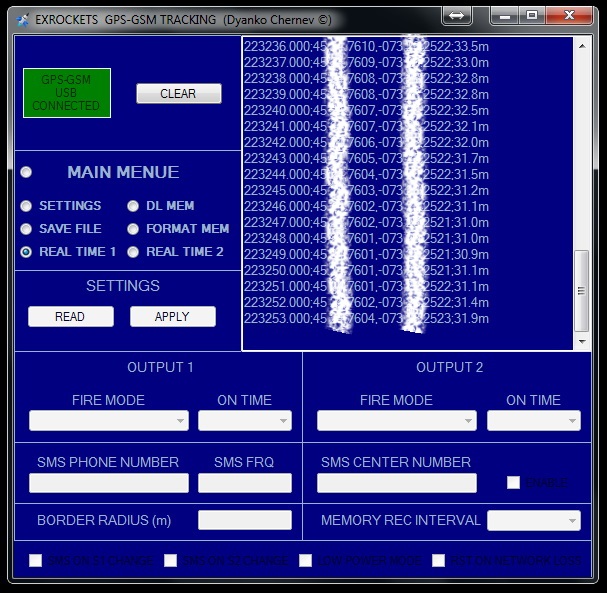

–    The current GPS coordinates are decoded and transmitted in real time in short format i.e. Latitude, Longitude and Altitude only.

F: Real time 2

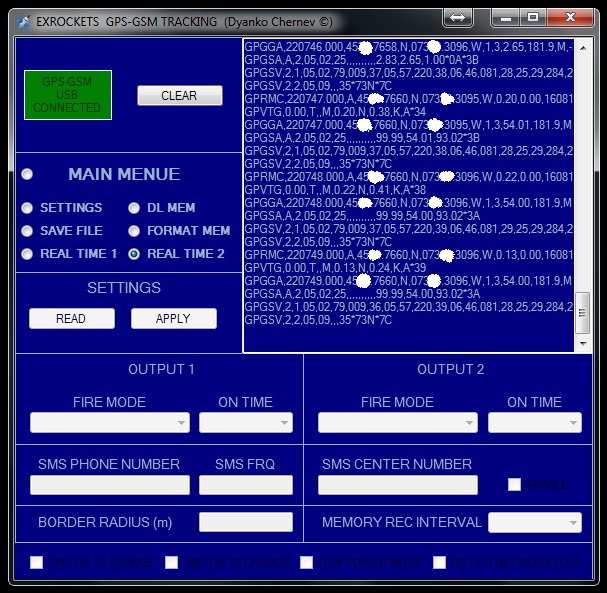

–    The current GPS information is transferred in real time without any post processing i.e. all NMEA messages are shown.

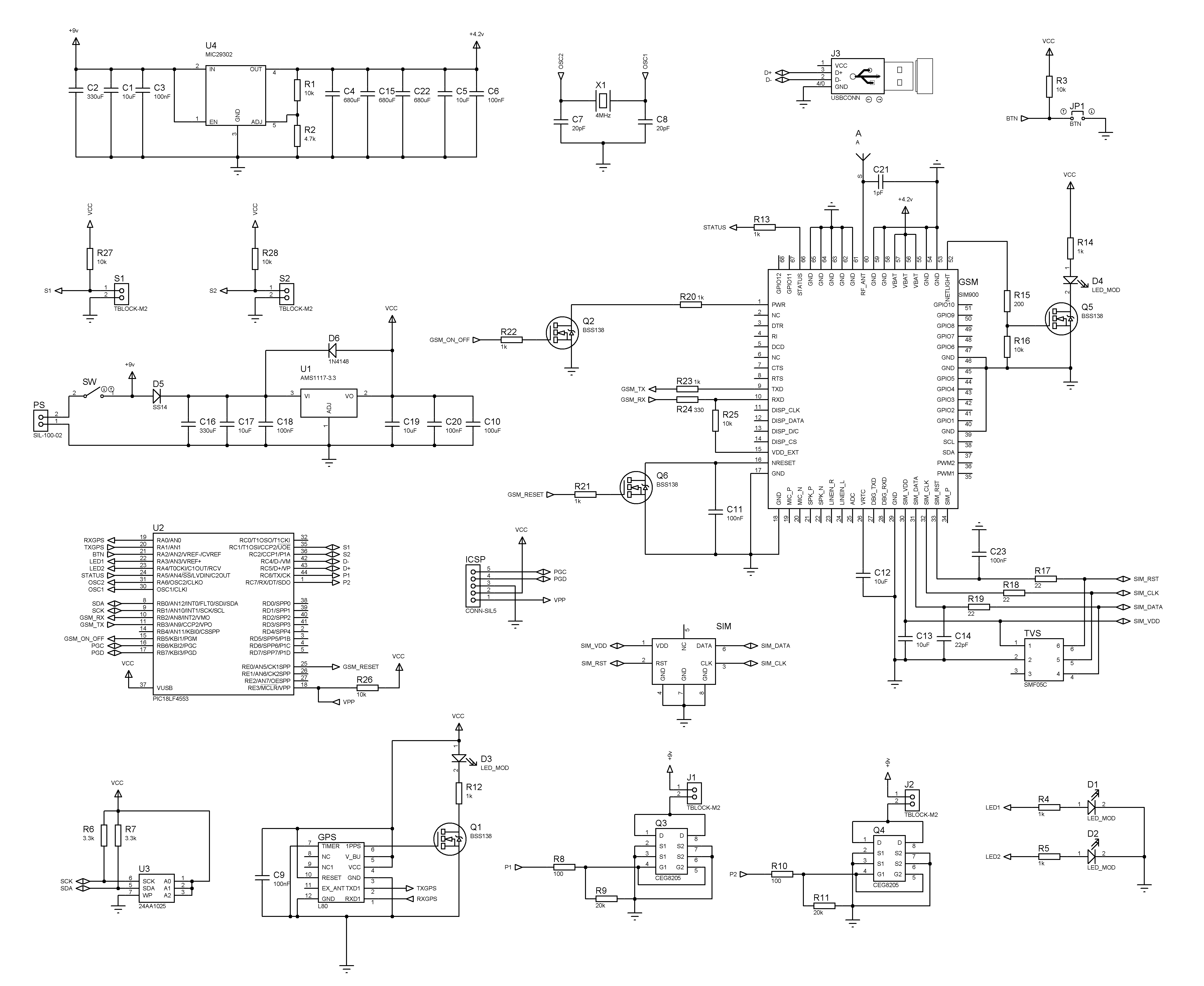

The schematic itself is very straightforward and corresponds to the datasheets of the modules with the two remarks that I will explain further down.

sch_gps_gsmInput S1 and S2 usage:
Each logic input has pull-up resistor that allow it to be used as simple wire or breaker sensor. So one pin of the terminal block has low current 3.3 volts and the other pin is connected to ground. Hence if you connect a thin wire between the two pins on the terminal block and you break the wire this will change the logic state and message will be sent (if this option is enabled). Respectively if the connection between the two pins is open and you close it then this is again change in the logic state and message will be sent (if this option is enabled). This also can be used as a switch to receive impulses from external devises that will trigger SMS messages.

Output1 and Output2 usage:
Those are power outputs that are connected directly to the battery input and have MOSFET transistors acting as switches. When switched on they can conduct up to 40Amps current for short periods or 8Amps continuous current. Their usage can vary and it is up to the imagination of the constructor. Some examples are: firing the parachute, breaking the parachute robes if the wind is taking the rocket too far, igniting smoke signalization, giving periodic audio and visual signals, powering breaking the power to external circuits at will etc.



This is actually the modified and improved PCB design because the original revealed two problems with the recommended by the manufacturer design for the GSM module.

It looks like that me as many other people have problem with randomly resetting GSM module. After thorough investigation of the problem I found that:

PROBLEM 1: If a power inductor is used on the power supply line as indicated on the reference datasheet, when the GSM module start sending or receiving a message because of the inductor there is a drop in the voltage to about minus -0.7v (there is a clamping diode) for 5 to 10 nano-seconds. Unfortunately this is enough to restart the module.

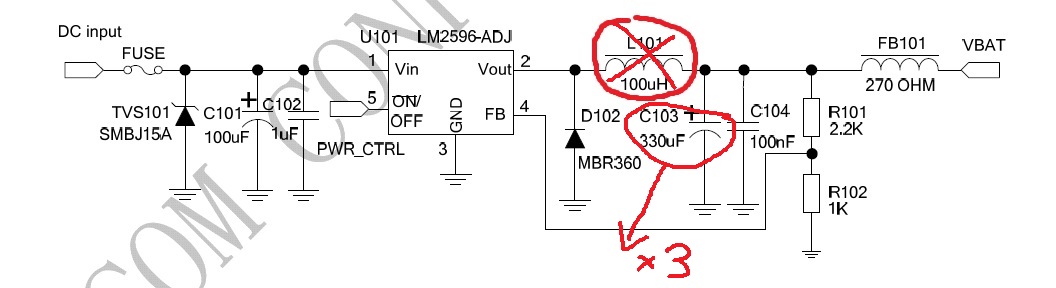

SOLUTION: As show on the schematic replace the power inductor with two or three tantalum capacitors of 330-680uF in parallel connected to ground. This removed any transient response drops even with weaker batteries.


POBLEM 2: Also I found out that for reason unknown to me, sometimes the RESET line on the SIM-card starts oscillating with a frequency of about 7 MHz with no obvious reason. When the GSM module attempts to send a message, the SIM-card can’t be properly initialized following the protocol and the GSM network drops the module.

SOLUTION: As shown on the diagram a single 100nF capacitor to ground on the SIM RESET line resolves the problem and no further oscillations were observed.


So all problems were corrected and it is time for testing the device.

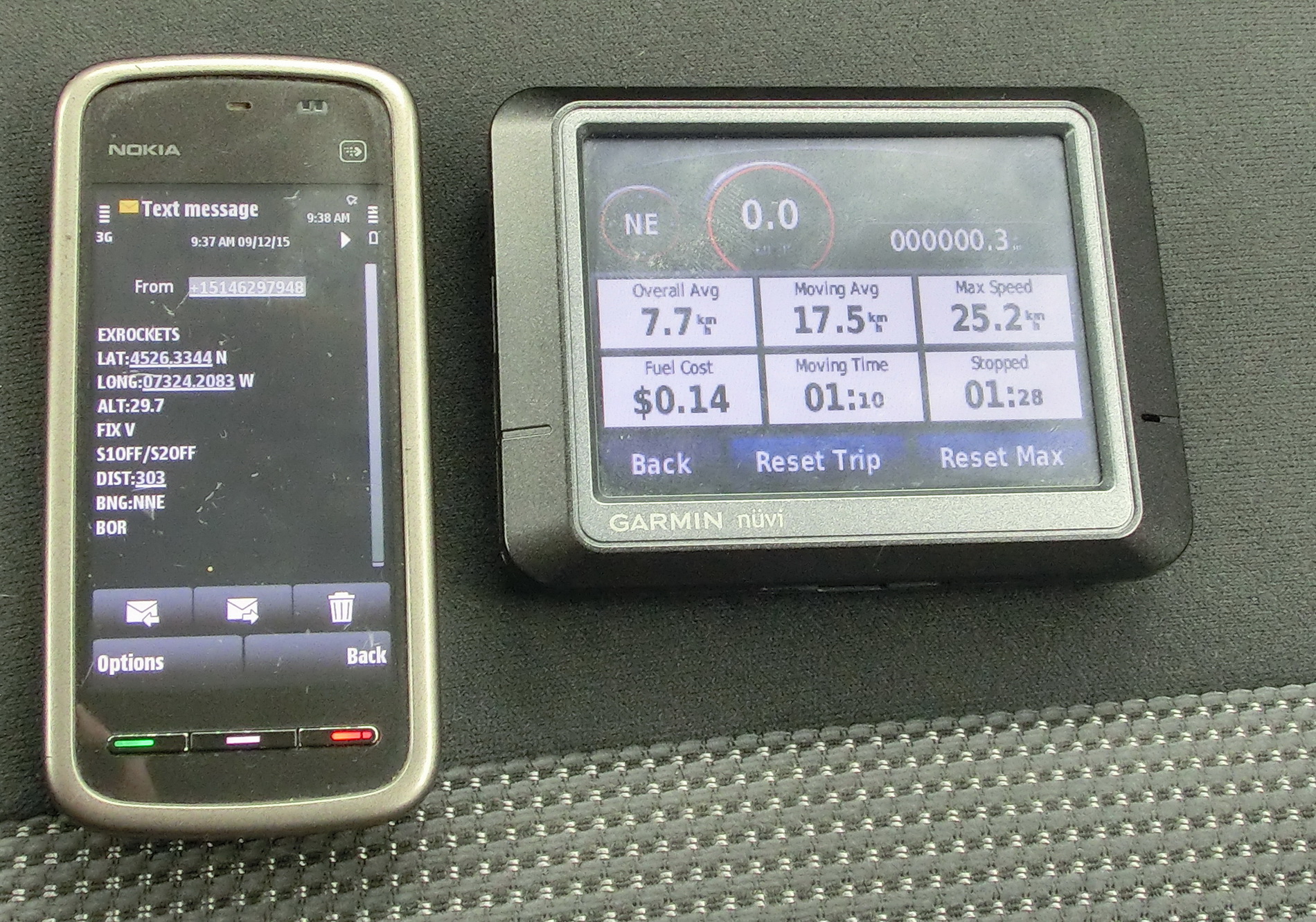

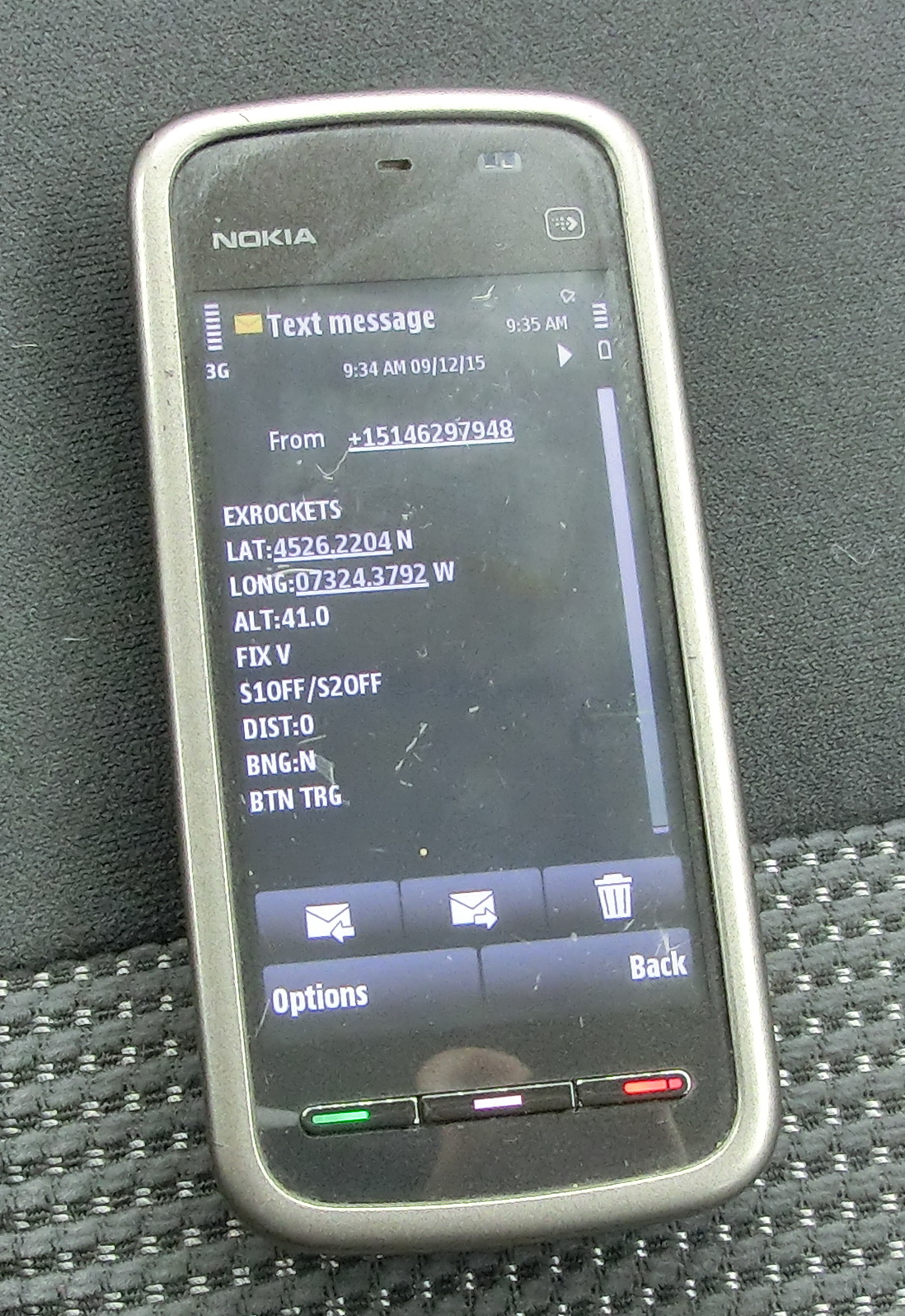

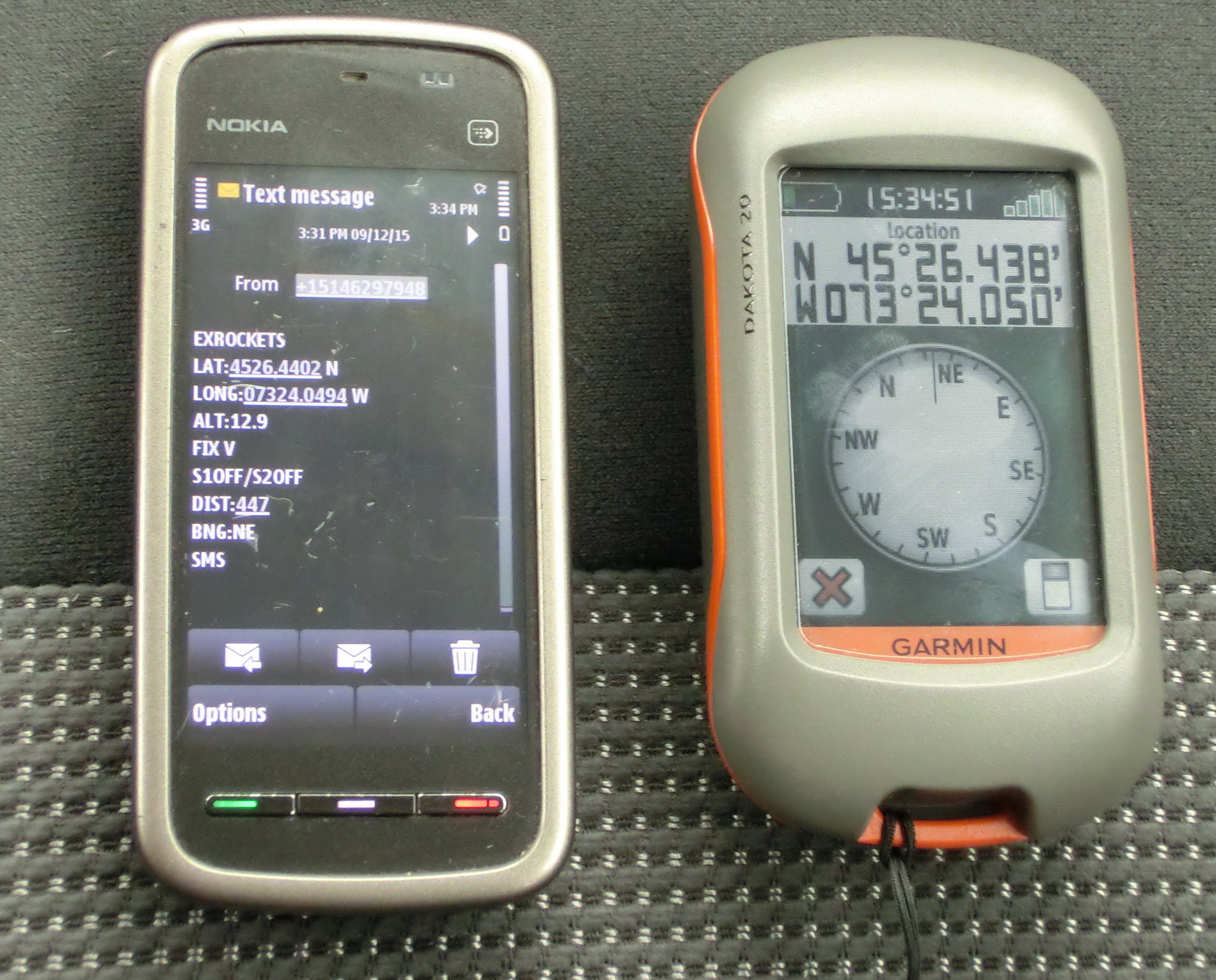

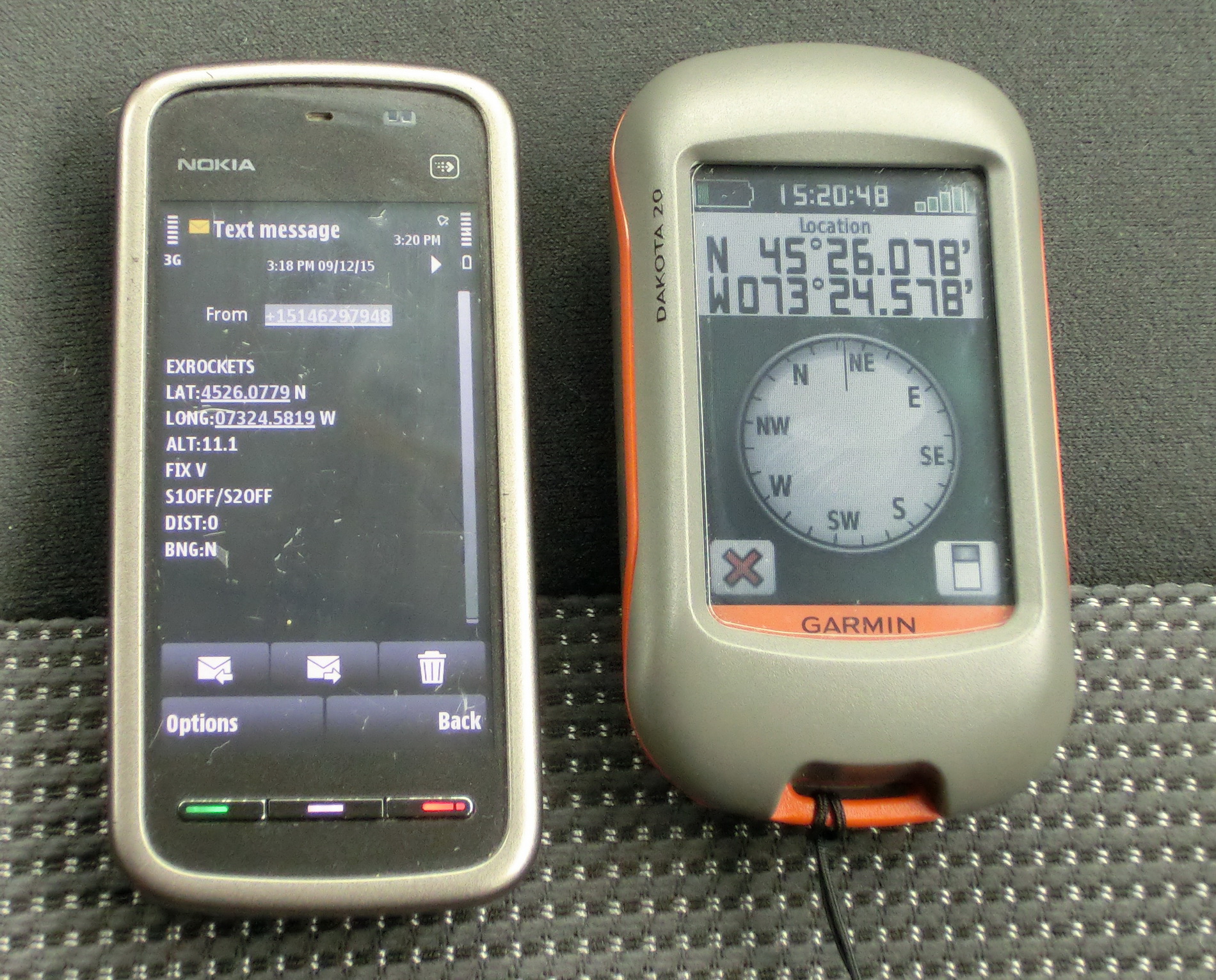

TEST FOR AUTOMATIC SMS AT BORDER RADIUS CROSSING –the radius was set to 300 meters, the pictures show the start and border position:

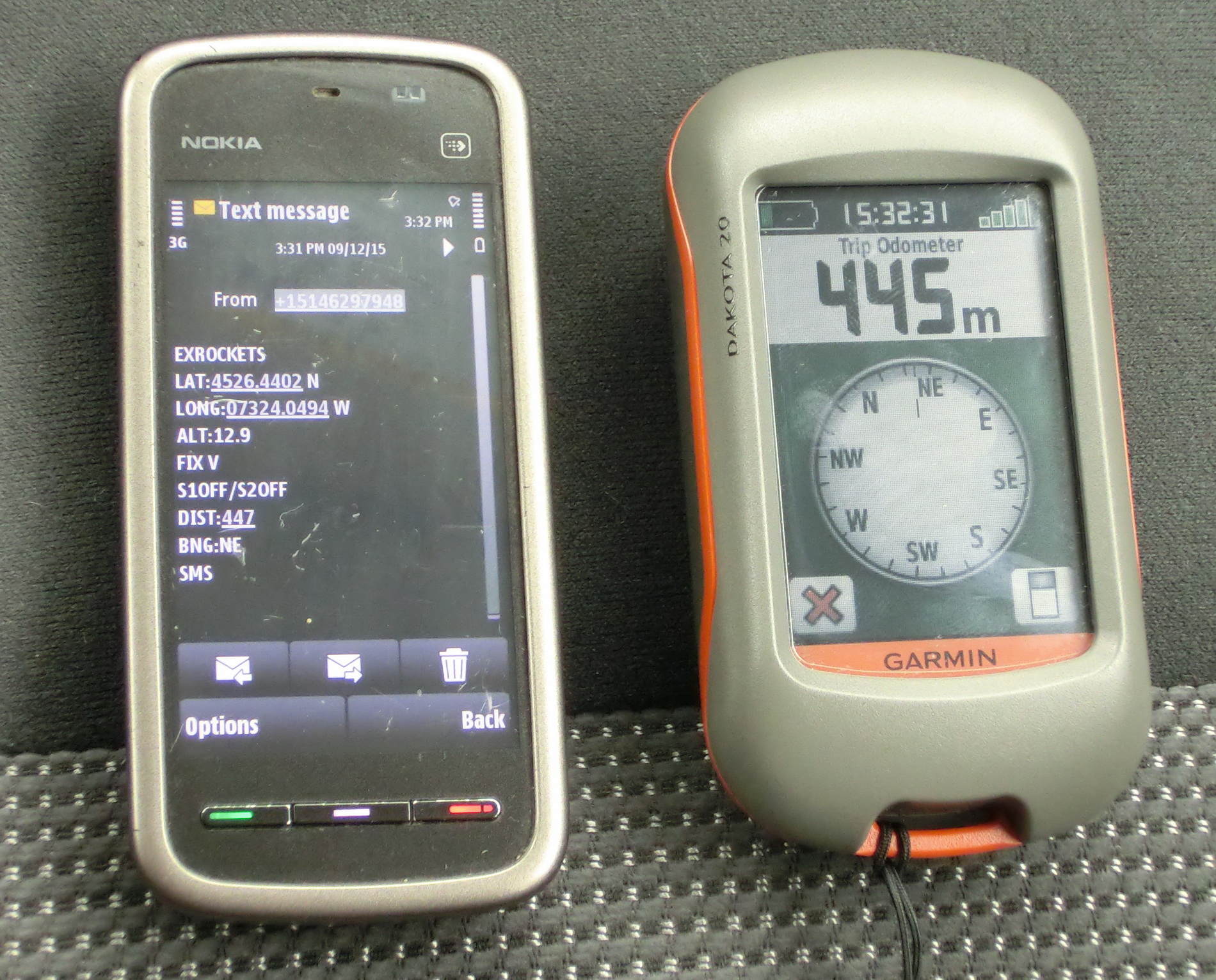

TEST FOR ACCURACY OF THE ALGORITHM FOR CALCULATING THE DISTANCE AND THE BEARING BASED ON THE GPS COORDINATES – the pictures show the start position, the current distance, bearing and coordinates.

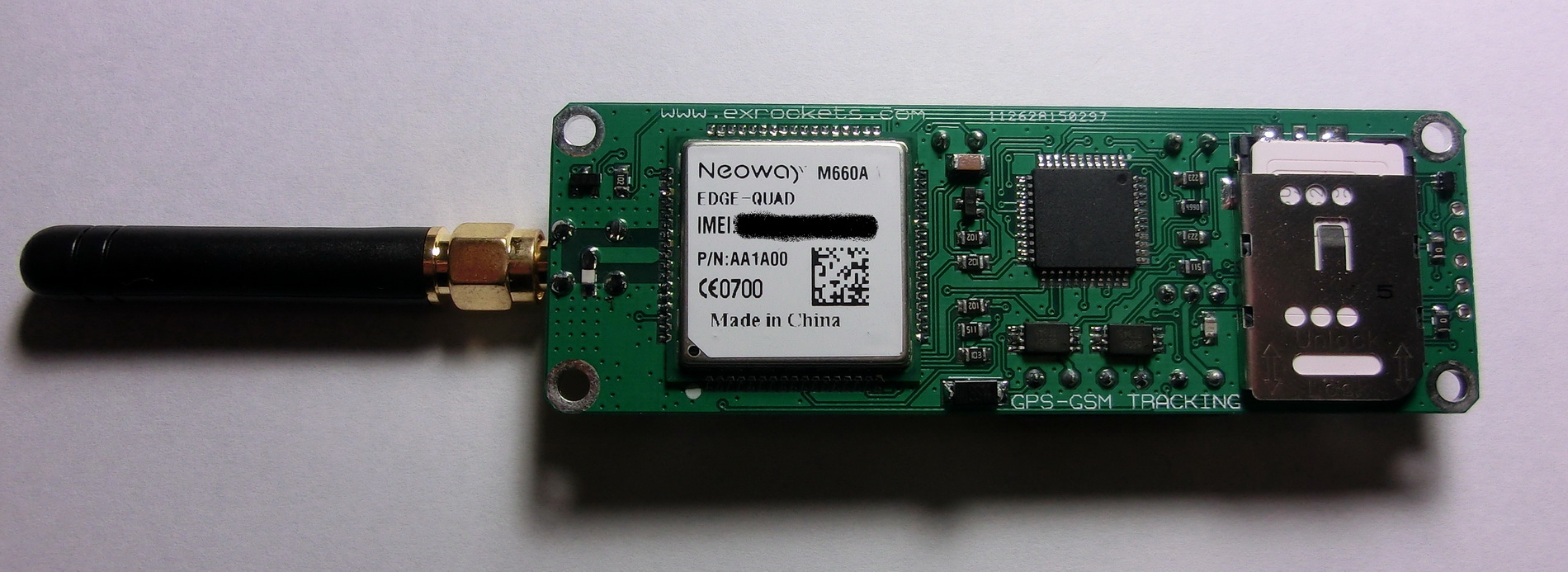

I also tested another GSM module, NEOWAY 660A, which for sending and receiving SMS messages is a cheap pin-to-pin replacement for the SIM900 module. The module works without problems and in terms of energy consumption this module shows lower consumption than the SIM900 module.


Recently bought new batch of the cheaper NEOWAY M660A modules. It looks like that in this version of the module firmware there is no auto-bauding function whereas the first NEOWAY M660A module that I received had this function implemented although nothing was mentioned about it in the datasheet. However the SIM900 module has the auto-bauding function described in the datasheet. So as a consequence after powering on both modules default to the initial 115200bps baud rate but, this version of the NEOWAY M660A can’t “automatically” switch to the lower 9600bps baud rate.

Simple solution was to write small subroutine in the firmware of my device that sends at 115200bps an instruction to the module to switch to lower baud rate. So if it happens that you have a NEOWAY M660A module and your device doesn’t send SMS you need to use the designated firmware that I uploaded (this firmware also works with the SIM900 since both modules accept the manual baud rate setup).

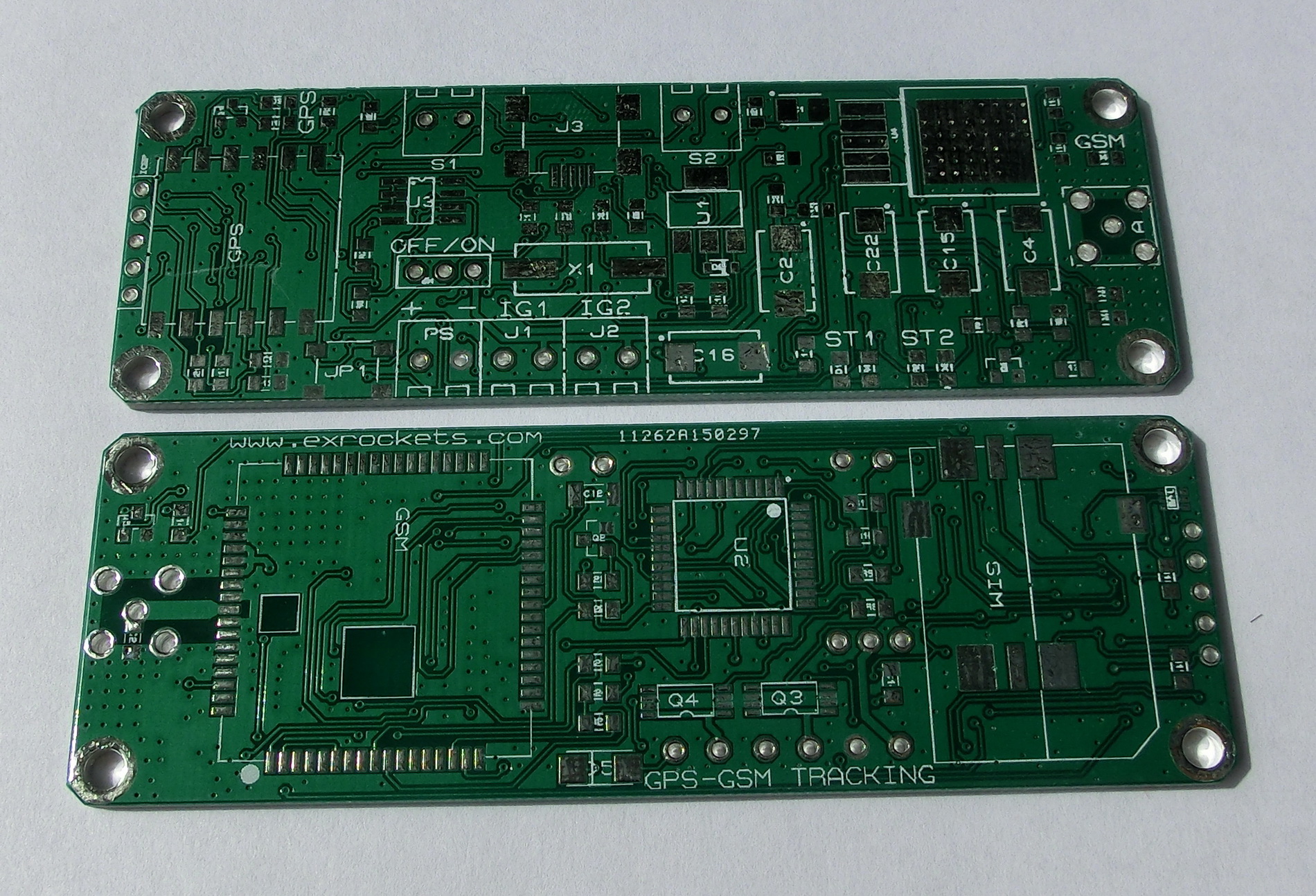

Finally I am attaching the PCB manufacturing files that can be used to order the printed circuit board, the board firmware that can be programmed with any PIC programmer and the PC software.

*Update Software Application to v1.2 – now when you save the downloaded information from the memory , in addition to the ordinary “TXT” file, the program will create a “KML” file which can be directly opened in Google Earth to draw the recorded path.
